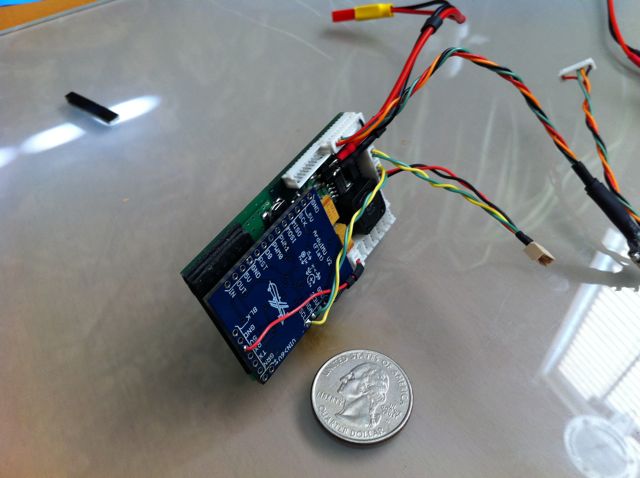

Photo showing how I wired up an ArduIMU to a Tiny13 autopilot. I would have used a TWOG instead but had zero room inside the Multiplex Merlin. 5v and ground from a servo connector and the two I2C wires from the serial1 connector.
